| CPU Platform | CPU Scoket | CPU # | U | Max CPU TDP | Chipset | Memory Type | Memory # | Storage # | Storage Bay | Storage Type | NVMe grade (option) | Storage Hotswap | SAS Controller | M.2 | Other Storage | ODD | O/B NIC | GPU Sport | PCIe # | PCIe slots | OCP | PSU # | Railkit | PSU Type | Heatsink Type | Depth (mm) |
| EPYC Genoa | LGA6096 | 1 | 1U | 240W | SOC | DDR5 4800 | 12 | 4 | 3.5" | SATA/SAS*/4xNVMe | - | Y | Option | 2 | 0 | 0 | Intel i350 1Gb x2 | - | 3 | 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) | 3.0X1 | 1+1 | 1000mm Friction | 800W 80+ Titanium | 1U EVAC HS | 842.5 x 449 X 43.85 |
-
Processor / System Bus
1 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 Series Processors (up to 400W) -
Memory
24 x DIMM slots DDR5 4800/4400 RDIMM/ 3DS RDIMM Maximum 6144GB *2DPC support depends on AMD schedule * Refer to support page for more information -
Expansion Slots
Up to 3 PCIe Gen5 slots + 1 OCP3.0 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) 1 x OCP3.0 socket (Gen5 x16 link) -
Storage
Storage Controller : CPU Integrated Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G HBA card -
Drive Bays
Front bays: 4 x 2.5” Hot-swap Storage Bays 4 x SATA/SAS/NVME *SAS support only from optional SAS HBA/RAID card 2 x M.2 connectors -
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller 1 x Management Port -
Graphic
Up to 2 single-slot GPU cards -
Front I/O Ports
2 x USB 3.2 Gen1 ports 1 x VGA port -
Rear I/O Ports
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x Management port 2 x 1GbE LAN ports -
Switch/LED
Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 1 x HDD LED 4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN) Rear: 1 x Port80 LED (Q-Code) 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED -
OS Support
Please find the latest OS support from https://servers.asus.com/support/os -
Management Solution
ASUS Control Center ASUS ASMB11-iKVM (on-board) -
Regulatory Compliance
BSMI, CB, CE, RCM, FCC(Class A) -
Dimensions
842.5mm x 449mm x 43.85mm (1U) 33.17" x 17.68" x 1.73" -
Form Factor
1U -
Weight
(approximate) Net Weight: 13.15 kg Gross Weight: 18.15 kg -
Power Supply
1+1 Redundant 1600W 80 PLUS Titanium Power Supply 1+1 Redundant 1200W/800W 80 PLUS Platinum Power Supply -
Environment
Operating temperature: 10°C – 35°C Non operating temperature: -40°C – 70°C Non operating humidity: 20% – 90% (Non condensing) Note Operating Temperature based on configurations
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
- * Optional means “built for order”.
| Parametr | Hodnota |
| Form factor | rack 1U |
| Paměť - velikost (GB) | 1 |

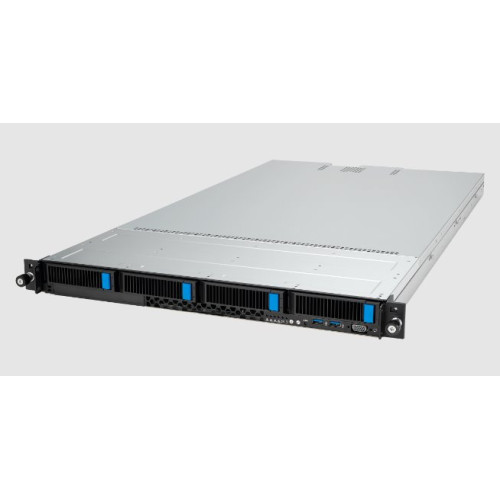

ASUS 1U server SP5 24x DDR5 4800 4x 3.5 NVMe/SATA, 3x PCIe5.0, 2x i350 1Gb, 2x800Wt
- Výrobce: ASUS
- Kód výrobku (P/N): 90SF02J1-M000R0
- Záruka: 36 měs.
- Dostupnost: 1 ks
- Průměrná cena: 67 825.07 Kč
-
61 104,24 Kč
- Bez DPH: 50 499,38 Kč vč.popl.
- Zpětný rabat: 504,99 Kč
