- LGA 1700
- Recommend for Intel® Alder Lake S Processor
- Copper base & aluminum fins with heat pipe embedded
- Up to TDP 125W
Application CPU Socket LGA 1700 CPU Recommend for Intel® Alder Lake S Processor Solution Active Cooler for 2U Server & up Technical Data Overall dimension 90.7 x 85.0 x 65.1 mm Weight 515.2g Heat Sink Material Copper Base & Aluminum Fins with Heat Pipe embedded Fan Fan Dimension 60 x 60 x 25 mm Speed At Duty Cycle 0~20%: 1600 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 Min RPM Bearing 2 Ball Bearing Rated Voltage 12 V Power At Duty Cycle 0~20%: 1.20W At Duty Cycle 50%: 2.28W At Duty Cycle 100%: 7.2W Air Flow At Duty Cycle 0~20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM Noise Level At Duty Cycle 0~20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA Static Pressure At Duty Cycle 0~20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O Lead Wire Pin Out Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM) Thermal grease Pre-printed

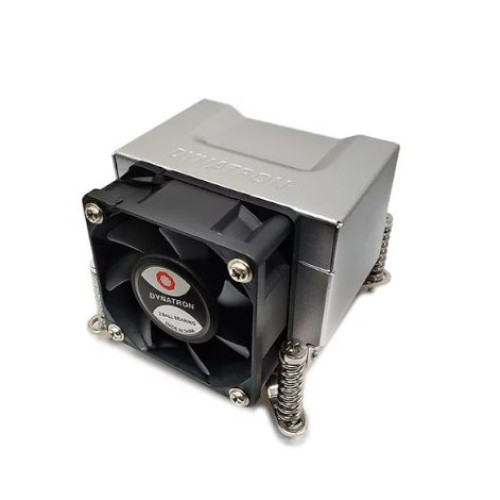

Dynatron Q5 - Active 2U Cooler Intel 1700 -RoHS
- Výrobce: SUPERMICRO
- Kód výrobku (P/N): Q5
- Záruka: 24 měs.
- Dostupnost: 7 ks
- Průměrná cena: 1 331.38 Kč
-
1 301,72 Kč
- Bez DPH: 1 075,80 Kč vč.popl.
- Zpětný rabat: 10,76 Kč
Tagy: SUPERMICRO, Chladiče CPU
