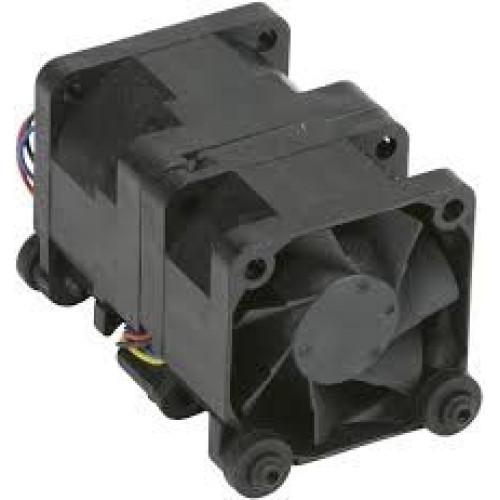

VÍCE ... Nidec (R40W12BS5AC-65T07A3) FAN-0086L4 is a standard fan for CSE-113MTS, CSE-113TS, and CSE-815TS series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.

Manufacturer
Nidec

Fan Size
40mm

Rated Fan Speed
12000 RPM [Inlet] / 11000 RPM [Outlet]

Acoustic Noise Level
56 dBA

Maximum Airflow Rate
24 CFM

Rate Current (A)
0.8A

Connector
4 Pin

Dimensions
40L x 40H x 56W (mm)

Validated Chassis
CSE-113TQ-563CB, CSE-113TQ-563UB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-113TQ-700CB, CSE-113TQ-700UB, CSE-113TQ-R500CB, CSE-113TQ-R500UB, CSE-113TQ-R700CB, CSE-113TQ-R700UB, CSE-113TQ-R700WB, CSE-815TQ-563CB, CSE-815TQ-563UB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQ-710UB, CSE-815TQ-720CB, CSE-815TQ-720UB, CSE-815TQ-R500CB, CSE-815TQ-R500UB, CSE-815TQ-R500WB, CSE-815TQ-R654CB, CSE-815TQ-R700CB, CSE-815TQ-R700UB, CSE-815TQ-R700WB, CSE-LB16AC2-R706AW

Search Terms
B8-04056CNI-024C006, A8-04056CNI-004C001, R40W12BS5AC-65T07A3

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
