Add-on Card   The Supermicro AOC-S100G-m2C provides exceptionally high performance at 100Gb/s Ethernet connectivity. Utilizing the Mellanox ConnectX®-4 EN chipset with features that such as VXLAN and NVGRE, this card offers network flexibility, high bandwidth with specific hardware offload for I/O virtualization, and efficiently optimizes bandwidth demand from virtualized infrastructure in the data center or cloud deployments. The AOC-S100G-m2C supports the RoCE specification with CPU offload, delivering low-latency and high-efficiency over Ethernet networks. Supermicro® Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-m2C is the building block of choice for the next generation of high speed Ethernet data center networks. This product is only available through Supermicro.   Key Features   • Dual QSPF28 Connectors • Low-Profile, Short Length Standard Form Factor • PCI-E 3.0 x16 • Mellanox ConnectX®-4 EN Ethernet Controller • Asset Management Features with thermal sensor • Hardware offloads for VXLAN, NVGRE and GENEVE encapsulated traffic • Low latency RDMA over Converged Ethernet (RoCE) • SR-IOV compliant • Jumbo Frames support up to 9.6kB • PXE Support • Erasure Coding Offload • NC-SI for IPMI support • RoHS compliant 6/6 Compliance   RoHS RoHS Compliant 6/6, Pb Free Downloads   User's Guide [ Download ] Datasheet [ Download ] Driver Choose the latest CDR-NIC folder, and then click on Intel & Mellanox folder for driver [ Download ] Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]

Specification   • General    - Mellanox ConnectX®-4 EN dual-port 100Gbps controller    - Compact size low-profile standard form factor    - PCI-E 3.0 x16 interface    - Dual QSFP28 connectors    - Max power consumption: 16.3W • Host Interface    - PCI-E 3.0x16    - Message Signal Interrupt (MSI-X) • Networking Features    - IEEE 802.2bj, 802.3bm 100 Gigabit Ethernet    - 25G Ethernet Consortium 25, 50 Gigabit Ethernet    - IEE 802.3ba 40 Gigabit Ethernet    - IEEE802.3ae 10 Gigabit Ethernet    - IEEE802.3az Energy Efficient Ethernet    - IEEE 802.3ap based auto-engotiation and KR startup    - IEEE 802.ad, 802.1AX Link Aggregation    - IEEE 802.1Q, 802.1p VLAN tags and priority    - IEEE802.1Qau (QCN) – Congestion Notification    - IEEE 802.1Qaz (ETS)    - IEEE 802.1Qbb (PFC)    - IEEE 802.1Qbg    - IEEE 1588v2    - Jumbo frame support (9.6KB) • CPU Offload Features    - RDMA over Converged Ethernet (RoCE)    - TCP/UDP/IP stateless offload    - LSO, LRO, checksum offload    - RSS, TSS, HDS, VLAN insertion/stripping. Receive flow      steering    - Intelligent interrupt coalescence • Storage Offloads    - RAID offload - erasure coding (Reed-Solomon) offload • Overlay Networks    - Stateless offloads for overlay networks and tunneling protocols    - Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks • Hardware-Based I/O Virtualization    - Single Root IOV    - Multi-function per port    - Address translation and protection    - Multiple queues per virtual machine    - Enhanced QoS for vNICs    - VMware NetQueue support • Virtualization Features    - SR-IOV: up to 256 Virtual Functions    - SR-IOV: up to 16 Physical Functions per port    - 1K ingress and egress QoS levels    - Guaranteed QoS for VMs • Operating Systems/Distribution    - RHEL/CentOS    - Windows    - FreeBSD    - VMware    - OpenFabrics Enterprise Distribution (OFED)    - OpenFabrics Windows Distribution (WinOF-2) • Management Features    - Asset Management features with thermal sensor    - NC-SI for IPMI Support • Remote Boot    - Remote boot over iSCSI    - PXE and UEFI • Operating Conditions    - Operating temperature: 0°C to 55°C (32°F to 131°F)    - Storage temperature: -40°C to 70°C (-40°F to 158°F)    - Storage humidity: 90% non-condensing relative humidity at 35°C • Physical Dimensions    - Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)    - Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in) • Weight    - 116.12g (0.2560lb) • Supported Platforms    - Supermicro® motherboards with minimum PCI-E 3.0 x16 expansion slot    - Supermicro® server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot    - NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors

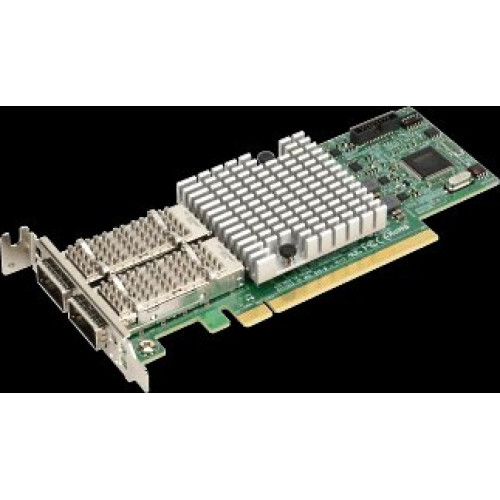

SUPERMICRO AOC-S100G-M2C Dual QSFPF28 100Gb/s, Mellanox ConnectX-4EN, PCIe3 x16

• Výrobce: SUPERMICRO
• Kód výrobku (P/N):  AOC-S100G-M2C-O
• Záruka:  36  měs.
• Dostupnost: 1 ks

• Průměrná cena: 17 132.96 Kč

• 16 541,69 Kč

• Bez DPH:  13 670,82 Kč  vč.popl.
• Zpětný rabat:  136,71 Kč
