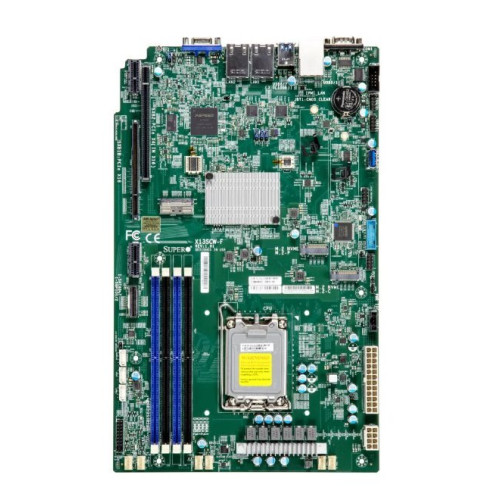

  • SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x5,16x 1x5x4 2xLAN IPMI WIO
VÍCE ...
Product SKUs
MBD-X13SCW-F
Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
  • Intel® Xeon ® 6300-series/ E-2400/Pentium®* Processor
  • Single Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
  • *Pentium® G7400 and G7400T
  • BIOS 2.0 or above is required to support Intel® Xeon® 6300-series processor
Core
  • Up to 8 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Type
  • 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (1DPC) or 4000 MT/s (2DPC)
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C266
SATA
  • Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 3 USB 3.2 Gen2 port(s) (2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16 Left Riser Slot,
  • 1 PCIe 4.0 x4 Right Riser (in x16) slot
M.2
  • M.2 Interface: 2 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
  • SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
Power Configurations
  • ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • -5°C - 55°C (23°F - 131°F)
Non-Operating Temperature Range
  • -30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range
  • 8% - 80% (non-condensing)
Non Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Parametr Hodnota
Typ paměti DDR4
Socket 1700

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x5,16x 1x5x4 2xLAN IPMI WIO

  • Výrobce: SUPERMICRO
  • Kód výrobku (P/N):  MBD-X13SCW-F-O
  • Záruka:  36  měs.
  • Dostupnost: 1 ks
  • Průměrná cena: 10 717.16 Kč

  • 10 813,60 Kč

  • Bez DPH:  8 936,86 Kč  vč.popl.
  • Zpětný rabat:  89,37 Kč
