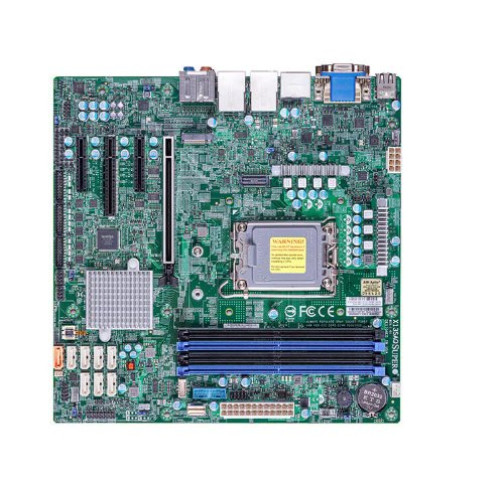

  • SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,1xM.2,1x16,1x42x3 PCIe PCI,HDMI,DP,DVI,Audio,2x LAN
VÍCE ...
Product SKUs
MBD-X13SAQ
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Single Socket V0 supported
Core
  • Up to 24 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s

  • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
  • 4400/4000/3600 MT/s
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel Q670E
SATA
  • Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Dual LAN with Intel® Ethernet i225LM
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
USB
  • 4 USB 2 port(s) (2 via header; 2 rear type A)
  • 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 2 USB 3.2 Gen2x2 port(s) (2 rear type C)
Video Output
  • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
  • 6 COM Port(s) (2 header; 4 header)
TPM
  • TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16,
  • 1 PCIe 4.0 x4 (in x8 slot),
  • 1 PCIe 3.0 x4,
  • 1 PCIe 3.0 x2 (in x4 slot),
  • 1 PCIe 4.0 x4 SlimSAS
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Software
  • Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New!
System Management Software
  • Wake-on-LAN, Watchdog
Power Configurations
  • ACPI Power Management, ATX Power connector
PC Health Monitoring
Voltage
  • VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
Other Features
  • RoHS
  • M.2 NGFF connector
  • Chassis intrusion detection
  • ATX Power connector
  • ACPI power management
FAN
  • 4x 4-pin fan headers (up to 4 fans)
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parametr Hodnota
Typ paměti DDR4
Velikost základní desky ATX

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,1xM.2,1x16,1x42x3 PCIe PCI,HDMI,DP,DVI,Audio,2x LAN

  • Výrobce: SUPERMICRO
  • Kód výrobku (P/N):  MBD-X13SAQ-O
  • Záruka:  36  měs.
  • Dostupnost: 7 ks
  • Průměrná cena: 10 896.97 Kč

  • 10 491,67 Kč

  • Bez DPH:  8 670,80 Kč  vč.popl.
  • Zpětný rabat:  86,71 Kč
